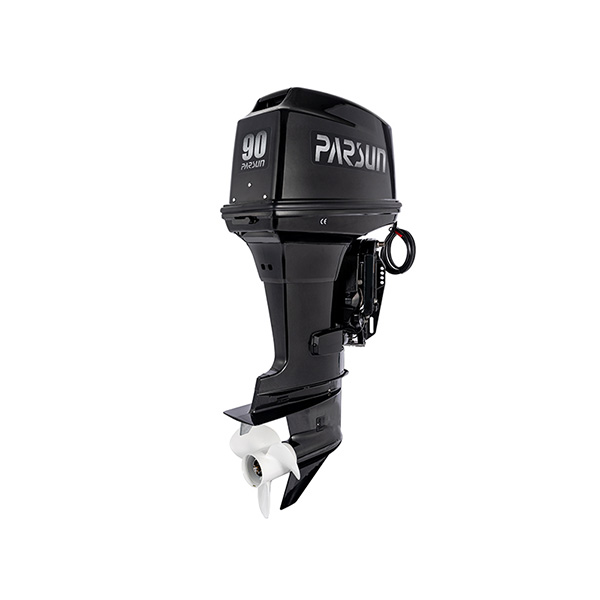

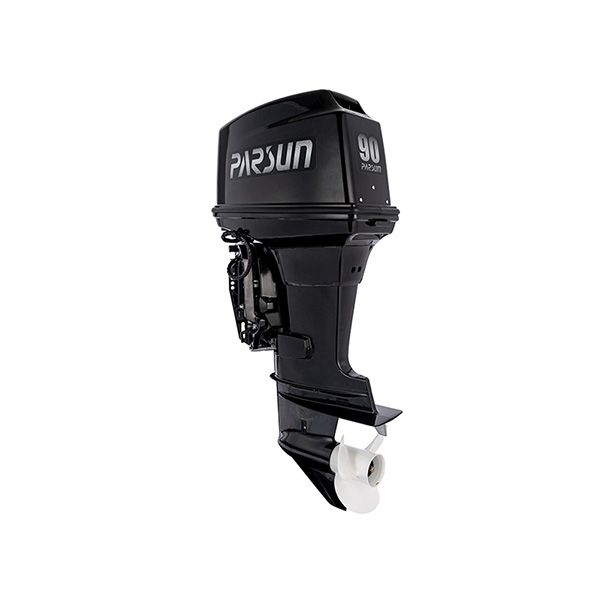

T90 Outboard Motor

Short Description:

The T90 is a powerful 2-stroke outboard motor with a displacement of 1141cc. As a high-power option, it is suitable for larger boats with a minimum transom height of 20 inches. Electric start and electric trim and tilt, with remote control, make the T90 easy to operate.


Product Details

FEATURES

2025051408110246

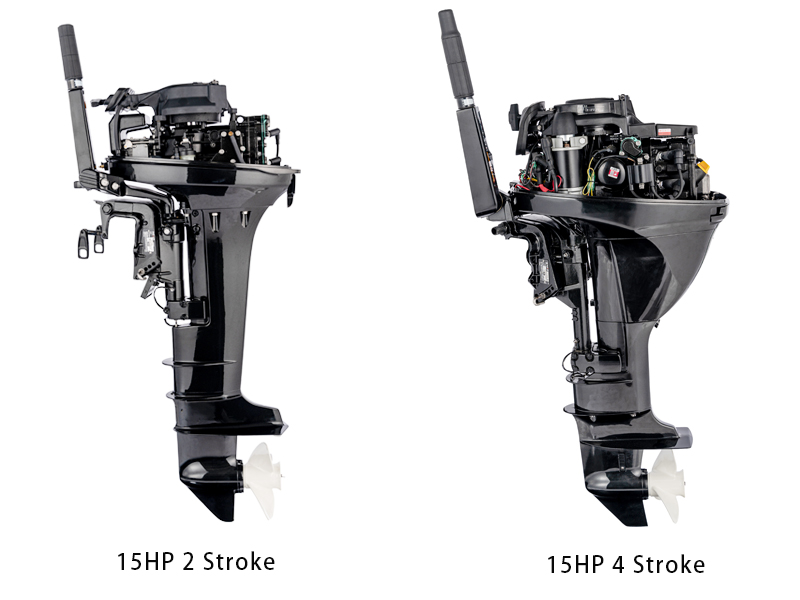

1. Simple structure. Compared with the four stroke outboard motors, the two stroke outboard motors have no too many circuits.
2. Light weight. In the same horsepower class, the two stroke outboards are much lighter than the four stroke outboards.
3. Stable performance. Thanks to the simple structure and mature technology, the two-stroke outboard engine has stable performance, is not prone to failure and has better durability.
4. Easy to repair and maintain with low cost.

SEPECIFICATIONS

Model T90
Specs Options T90BML-D/T90BMX-D/T90BEL-D/T90BEX-D/T90FEL-T/T90FEX-T
Max. Output Power 90HP(66.2KW)
Transom height 20/25in.
Weight 115-122kg
Max. RPM Range 4500~5500r/min
Idling RPM Range 750~850r/min
Engine Type L3  Reed Valve
Displacement 1141cc
Bore×Stroke 82.0×72.0mm
Ignition System CDI
Fuel Iduction System Carburetor
Steering System Tiller/Remote Control
Starting System Manual or Electric
Gear Shift F-N-R
Gear Ratio 2.0
Trim and Tilt Gas Assist/Electric
Fuel Tank Capacity 24L
Max. Fuel Consumption 37L/h
Lubrication System 50:1
Gear Oil Capacity 610cc
Propeller Options 3-13" / 15" / 17"
